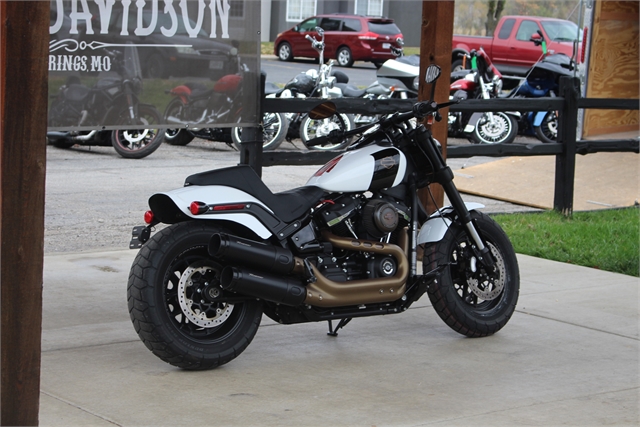

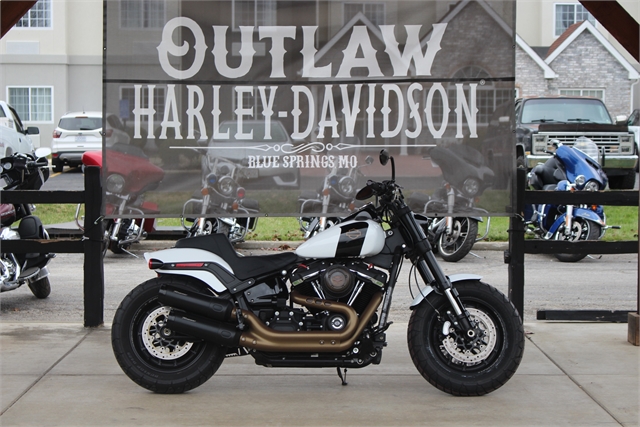

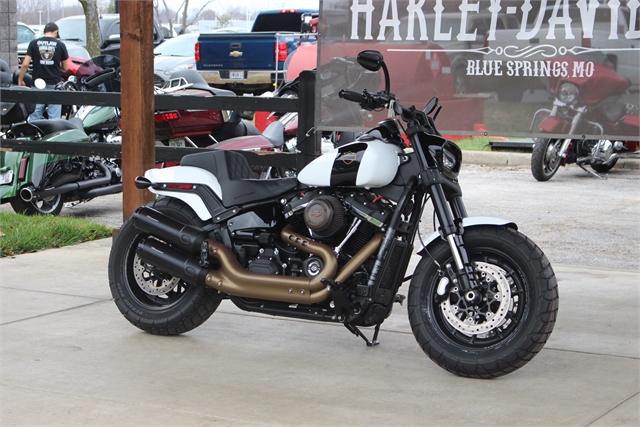

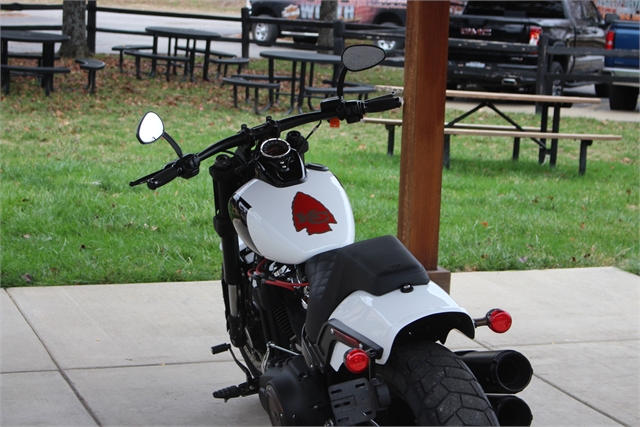

2018 Harley-Davidson Softail Fat Bob  Featured

Select Pre-Owned

Stock #27258T
Contact For Details Hi, my name is and I'm interested in this 2018 Harley-Davidson Softail Fat Bob . You can reach me at or by phone at .



FAT BOB®
The all-new Fat Bob features aggressive, unapologetic styling, mind-blowing performance and handling, premium finishes, and your choice of the powerful Milwaukee-Eight® 107 Big Twin Engine.



WHEN YOU HIT THE THROTTLE,
HOLD ON TIGHT

Inverted Forks
The all-new inverted front forks deliver more precise handling.

Dual Disc Front Brakes
The Milwaukee-Eight engine is not short on power. And these high-performance dual disc brakes help you keep that power in check when you need to.

2-1-2 Exhaust
Big performance-inspired, upswept exhaust with a custom contrast finish.

Cast Wheels with Fat Tires
Bold aluminum wheels with fat, aggressive tires that give you asphalt-eating traction.

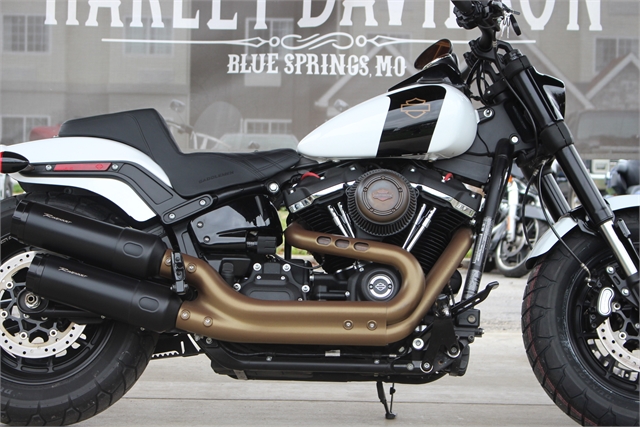

Milwaukee-Eight Big Twin Engine
A powerful, smooth-running engine with crisp throttle response and a pure, soul-satisfying rumble. Available in 107 engine displacement.

LED Lighting
A bold, new headlight design that gives you greater visibility at night and during the day makes sure all eyes are focused on you.

High Performance Front Suspension
New suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock
All-new easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.

  • Status:
    Pre-Owned
  • Vehicle:
    2018 Harley-Davidson Softail Fat Bob
  • VIN:
    1HD1YKJ19JC027258
  • Model Number:
    FXFB
  • Mileage:
    8,520 miles
  • Color:
    Black
  • Stock Number:
    27258T
  • Title:
    Clear
  • Location:
    Outlaw Harley-Davidson
  • Warranty:
    As Is

BRAKES

  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)

ENGINE

  • Bore (in):
    3.94
  • Bore (mm):
    100.1
  • CAN Liters Per Kilometer (Combined):
    5
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10
  • Cooling:
    Oil
  • Cylinders:
    2
  • Displacement (cc):
    1753.4
  • Displacement (ci):
    107
  • Engine Brand Name:
    Milwaukee-Eight™ 107
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111
  • Torque (Ft Lbs):
    107
  • Torque (Nm):
    145.1
  • Torque RPM:
    3500
  • US Miles Per Gallon (Combined):
    47
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Belt Guard:
    Yes
  • Foot Peg Location:
    Driver and Passenger
  • Frame:
    Steel
  • Side Cover:
    Yes
  • Stand Type:
    Kick

GLASS

  • Folding:
    Yes

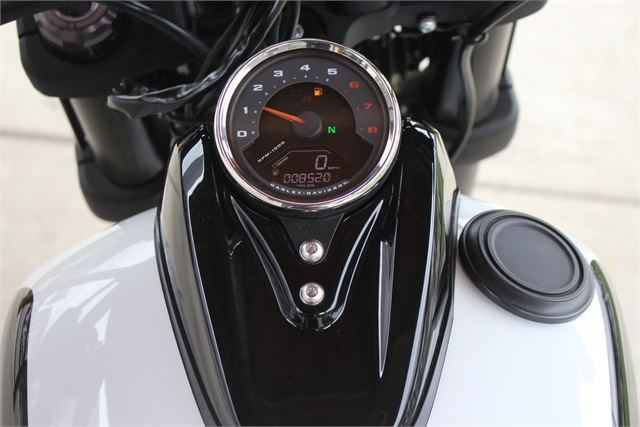

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    LED

SEATS

  • Number Of Seats:
    2
  • Seat Height (in):
    28
  • Seat Height (mm):
    711.2
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

SUSPENSION

  • Front Suspension Type:
    Inverted Fork
  • Front Travel (in):
    5.1
  • Front Travel (mm):
    130
  • Number Rear Shock Absorbers:
    1
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    296.2
  • Dry Weight (lbs):
    653
  • Engine Displacement to Weight (cc):
    2.69
  • Fuel Capacity (gal):
    3.6
  • Fuel Capacity (l):
    13.6
  • Ground Clearance (in):
    4.7
  • Ground Clearance (mm):
    120
  • GVWR (kgs):
    526
  • GVWR (lbs):
    1160
  • Height (in):
    43.7
  • Height (mm):
    1110
  • Length (ft):
    7.68
  • Length (ft/ft):
    7
  • Length (ft/in):
    8.1
  • Length (in):
    92.1
  • Length (mm):
    2340
  • Payload Capacity (kgs):
    221
  • Payload Capacity (lbs):
    487
  • Wet Weight (kg):
    305.3
  • Wet Weight (lbs):
    673
  • Wheelbase (in):
    63.6
  • Wheelbase (mm):
    1615
  • Width (in):
    37.8
  • Width (mm):
    960

TRANSMISSION

  • Gear Ratio (1):
    9.311
  • Gear Ratio (2):
    6.454
  • Gear Ratio (3):
    4.793
  • Gear Ratio (4):
    3.882
  • Gear Ratio (5):
    3.307
  • Gear Ratio (6):
    2.79
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Front Tire (Full Spec):
    Dunlop® 150/80 R16 71H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    H
  • Front Tire Width:
    150
  • Front Wheel Diameter:
    16
  • Rear Tire (Full Spec):
    Dunlop® 180/70 R16 77H
  • Rear Tire Aspect Ratio:
    70
  • Rear Tire Speed Rating:
    H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum

Our Location

Outlaw Harley-Davidson
3100 Northwest Jefferson
Blue Springs, MO 64015

Availability: In Stock
